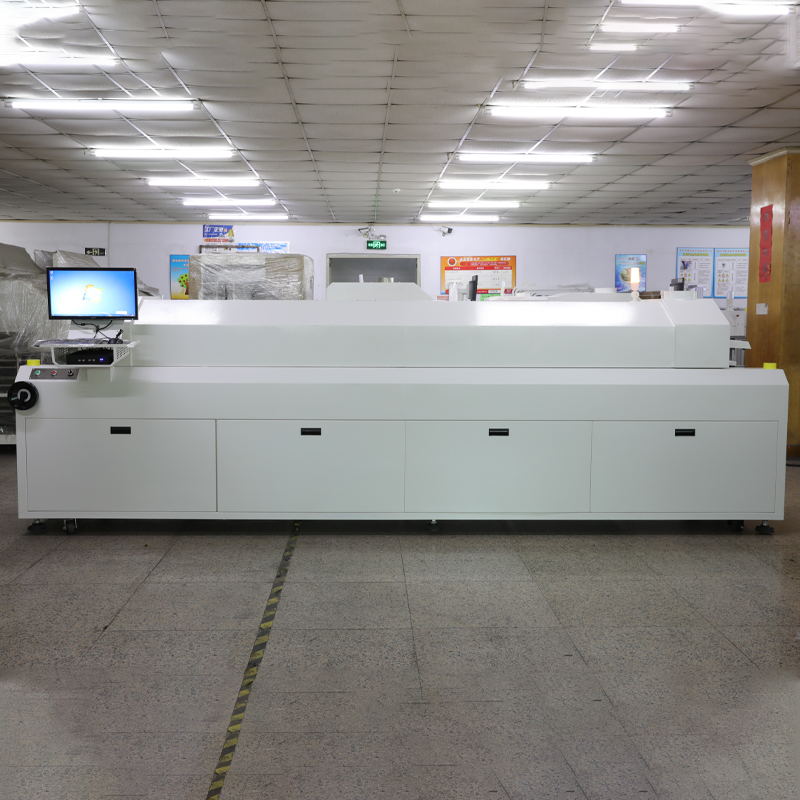

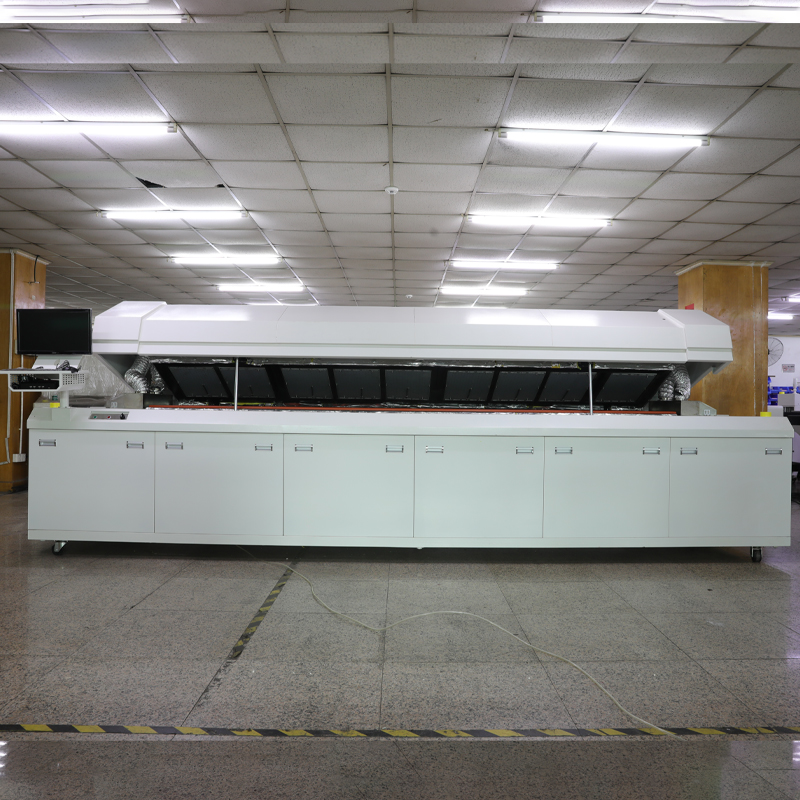

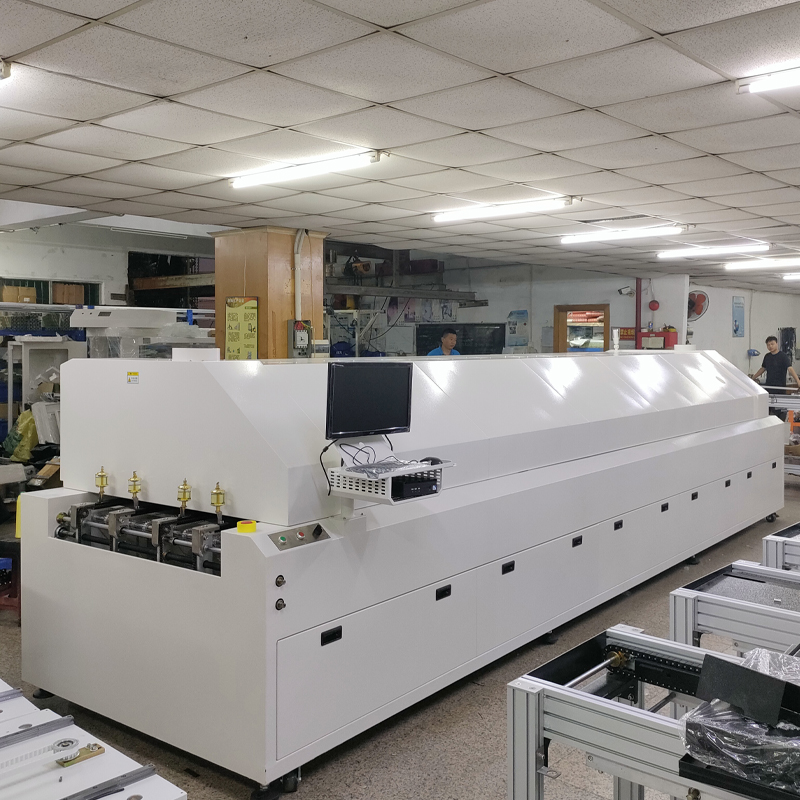

10 Temperature Zones Dual Track Lead-Free Reflow Oven
1. It adopts LCD computer + Intelligent Siemens control system and adopts modular temperature control system with high precision of ± 1 °C (if the computer crashes accidentally, it can work offline without affecting production) , which guarantees the stability and reliability of the Control System;
2. Windows 7 operating interface, powerful, easy to operate, and with a key reduction system;

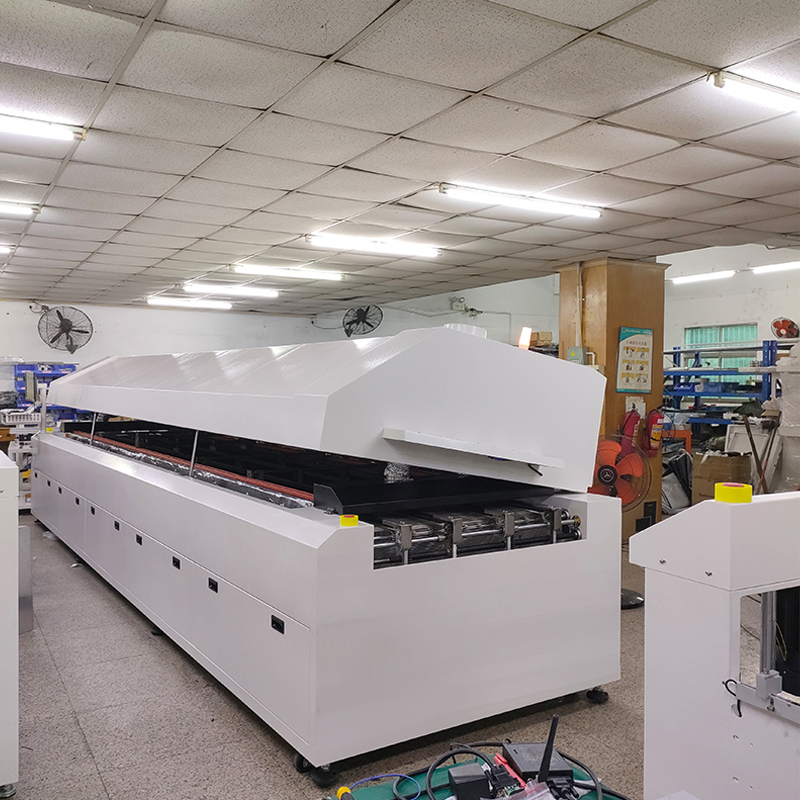

3. The upper furnace body is opened with a double cylinder jacking machine to ensure safety and reliability
4. Equipped with net belt tension device, smooth transportation, no jitter, no distortion, to ensure smooth PCB transportation;
5. The transmission mechanism of synchronous Guide Rail (can connect with automatic mounter on-line) to ensure accurate width adjustment of guide rail, High Service Life and anti-button curve;
6. Manual control lubrication system, refueling time manually controlled by the amount of oil, lubrication transmission chain;
7. All heating areas are PID controlled by computer (can be divided into separate temperature areas opened separately. Can Be divided to reduce the starting power, heating time 10-15 minutes) ;
8. The network/chain transmission is controlled by computer in full closed loop, which can meet the needs of different kinds of PCB production
9. Has the breakdown sound and light alarm function (uses the LED lamp) ;
10. BUILT-IN UPS and automatic delay shutdown system to ensure that the PCB and reflow soldering machine in power failure or overheating from damage;
11. It adopts the world-leading hot air circulation heating mode of Heller, high-efficiency pressurization type accelerating air duct, greatly improves the circulation hot air flow rate, raises the temperature quickly, has high thermal compensation efficiency, can carry on the high temperature welding and curing;
12. Temperature zone is equipped with independent temperature sensor, real-time monitoring and compensation of the temperature balance of the temperature zone;
13. Have Password Management of the operating system, to prevent unrelated personnel change process parameters, operation records management traceable process parameters change, easy to improve management. The utility model can store the user's existing temperature speed setting and the temperature curve under the setting, and can print all the data and the curve;
14. Integrated Control Window, computer switch, test curve, print curve and transfer data are easy to operate, design humanization. Equipped with three-channel temperature curve on-line testing system, it can test the actual temperature curve of the welding object at any time (without additional temperature curve Tester) ;
15. The rapid cooling system, which comes from international technology, adopts magnifier type concentrated and high efficient rapid cooling, the cooling rate can reach 4 ~ 8 °C/SEC, so it is very convenient to manage and ensure the crystallization effect of solder joint
16. Rosin Recovery System: set up the Rosin Recovery System in the constant temperature zone of the inlet and preheating zone of the furnace body, and set waste gas recovery system in the reflux zone and cooling zone, the maintenance operation is convenient, quick and flexible. The special pipe is used to transport the waste gas
17. Specially designed pressurized air transport structure and shaped heating wire design, no noise, no vibration, with high heat exchange rate, the temperature difference between BGA bottom and PCB board is extremely small, most in line with the strict requirements of lead-free process, especially for high-difficulty welding requirements of lead-free products.
2. Windows 7 operating interface, powerful, easy to operate, and with a key reduction system;
3. The upper furnace body is opened with a double cylinder jacking machine to ensure safety and reliability
4. Equipped with net belt tension device, smooth transportation, no jitter, no distortion, to ensure smooth PCB transportation;
5. The transmission mechanism of synchronous Guide Rail (can connect with automatic mounter on-line) to ensure accurate width adjustment of guide rail, High Service Life and anti-button curve;
6. Manual control lubrication system, refueling time manually controlled by the amount of oil, lubrication transmission chain;
7. All heating areas are PID controlled by computer (can be divided into separate temperature areas opened separately. Can Be divided to reduce the starting power, heating time 10-15 minutes) ;
8. The network/chain transmission is controlled by computer in full closed loop, which can meet the needs of different kinds of PCB production
9. Has the breakdown sound and light alarm function (uses the LED lamp) ;
10. BUILT-IN UPS and automatic delay shutdown system to ensure that the PCB and reflow soldering machine in power failure or overheating from damage;
11. It adopts the world-leading hot air circulation heating mode of Heller, high-efficiency pressurization type accelerating air duct, greatly improves the circulation hot air flow rate, raises the temperature quickly, has high thermal compensation efficiency, can carry on the high temperature welding and curing;
12. Temperature zone is equipped with independent temperature sensor, real-time monitoring and compensation of the temperature balance of the temperature zone;
13. Have Password Management of the operating system, to prevent unrelated personnel change process parameters, operation records management traceable process parameters change, easy to improve management. The utility model can store the user's existing temperature speed setting and the temperature curve under the setting, and can print all the data and the curve;
14. Integrated Control Window, computer switch, test curve, print curve and transfer data are easy to operate, design humanization. Equipped with three-channel temperature curve on-line testing system, it can test the actual temperature curve of the welding object at any time (without additional temperature curve Tester) ;
15. The rapid cooling system, which comes from international technology, adopts magnifier type concentrated and high efficient rapid cooling, the cooling rate can reach 4 ~ 8 °C/SEC, so it is very convenient to manage and ensure the crystallization effect of solder joint
16. Rosin Recovery System: set up the Rosin Recovery System in the constant temperature zone of the inlet and preheating zone of the furnace body, and set waste gas recovery system in the reflux zone and cooling zone, the maintenance operation is convenient, quick and flexible. The special pipe is used to transport the waste gas
17. Specially designed pressurized air transport structure and shaped heating wire design, no noise, no vibration, with high heat exchange rate, the temperature difference between BGA bottom and PCB board is extremely small, most in line with the strict requirements of lead-free process, especially for high-difficulty welding requirements of lead-free products.
Zones Reflow Oven
Zones Reflow Oven
Zones Reflow Oven
Zones Reflow Oven
Zones Reflow Oven
Zones Reflow Oven
|
Model |
SD-1000XL |
|
Applicable element types |
0805,0603,0402.0201,01005 small element CSP, BGA, etc., single side / double panel |
|
L * W * H (MM) |
6010*1560*1450mm |
|
Body weight |
2500KG |
|
Temperature areas |
Hot air in upper 10, hot wind in lower 10,20 temperature control and 1 special cooling area |
|
Temperature control mode |
Each temperature zone is independently controlled by the temperature module PID + pulse + SSR |
|
Temperature zone control accuracy |
±1℃ |
|
Temperature control range |
Room temperature of ~ 350℃ |
|
Heating time (cooler start) |
About 15 minutes |
|
Air transport mode |
Adopt the world's leading hot air circulation technology, reasonable use of hot air circulation through turbocharging to make hot air stable; High recycling rate of thermal efficiency, that is, energy saving and stable. When a large number of PCB passes through, the temperature curve on each PCB is always consistent with the temperature curve when only one board passes through. The heating repetition precision is extremely high, which is very suitable for the characteristics of small process space in lead-free process (improved by imported furnace technology). |
|
Internal Structure |
Using the turbine double air outlet to increase the wind speed pressure, make the wind speed stable, stable temperature, the welding effect is better |
|
Transmission network band width |
750mm |
|
Cross board width |
Double guide track 50-300 * 2mm, monorail 50 * 550mm |
|
Move Mode |
There are two synchronous modes of network belt transmission and double guide rail chain transmission |
|
Delivery direction |
Left to right (can be customized right to left) |
|
Transport Height |
900±20mm |
|
Transport Speed |
0~2200mm/min |
|
Guide Rail |
Special aluminum alloy guide rail, surface hard oxidation treatment, high strength, Thermal deformation is small |
|
Cooling-down Method |
Length turbocharged cooling zone: 2 cooling zones + 1 independent cooling zone |
|
It can fully meet the cooling rate of 4-8℃ / S for lead-free welding |
|
|
Power Supply |
A 3-phase five-wire system of 380V |
|
Total Power |
72KW |
|
Start-up power |
60KW |
|
No-load constant temperature power |
Around 10-12KW |
|
Transfer motor |
Motor 220VAC three-phase 90W |
|
Air motor |
Taiwan Sanyue high temperature motor three-phase AC220 / 380V 125W |
|
Taiwan motor at 2800 RPM |
|
|
frequency changer |
By 3 different power frequency control hot air frequency, can let you follow the product to adjust the frequency to change the wind speed, make the product quality more reliable, |
|
Heat Generation Part |
Spiral 2-bit integrated direct drawer type, Taiwan high quality heating wire group, fast heat exchange, long life, high heat utilization rate |
Reflow welding technology has many advantages over the traditional manual welding method. First, reflow technology enables efficient production lines. Through the use of automated equipment, reflow technology can greatly improve production efficiency, shorten production cycles, and reduce the occurrence of human factors and failures caused by human operations.
Second, reflow technology is very suitable for surface mount electronic components. Compared with traditional manual welding methods, reflow welding technology can more accurately weld electronic components, improve welding quality and product reliability. In addition, reflow technology can also enable the production of smaller and lighter electronic components, which is very important for the manufacture of micro electronic components.
Second, reflow technology is very suitable for surface mount electronic components. Compared with traditional manual welding methods, reflow welding technology can more accurately weld electronic components, improve welding quality and product reliability. In addition, reflow technology can also enable the production of smaller and lighter electronic components, which is very important for the manufacture of micro electronic components.
