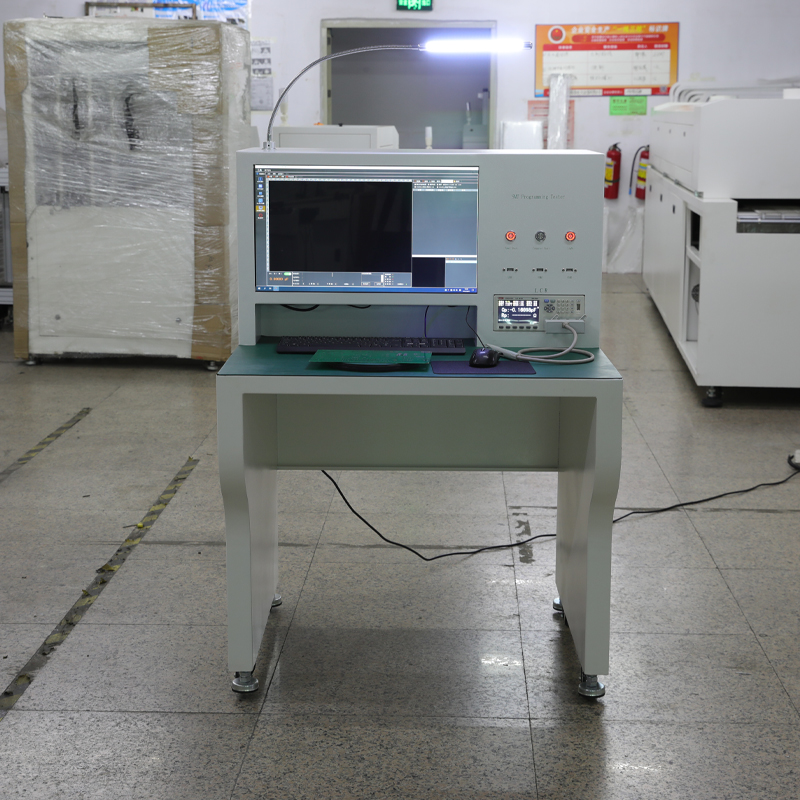

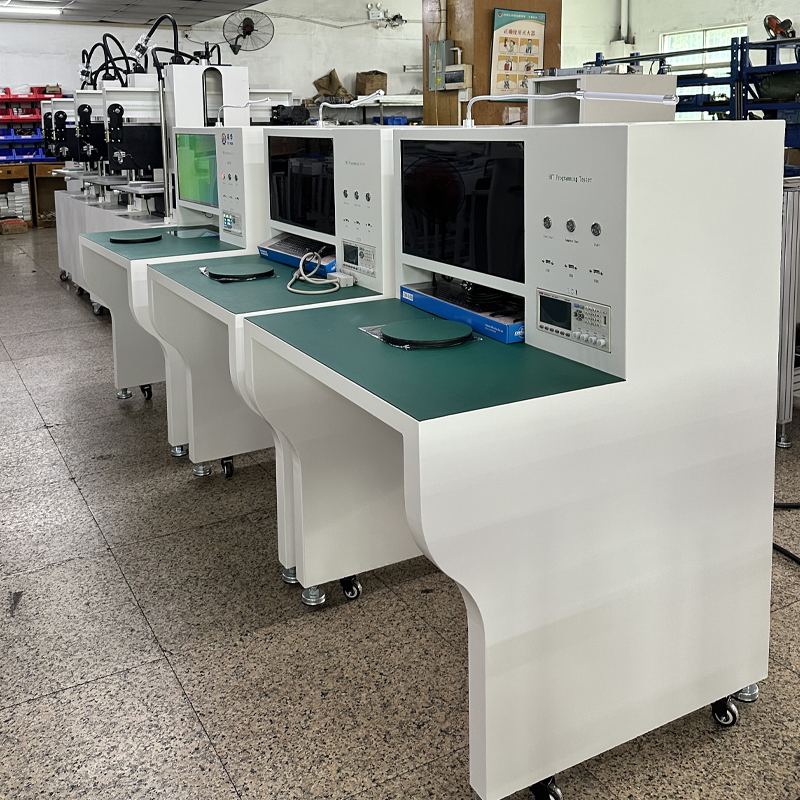

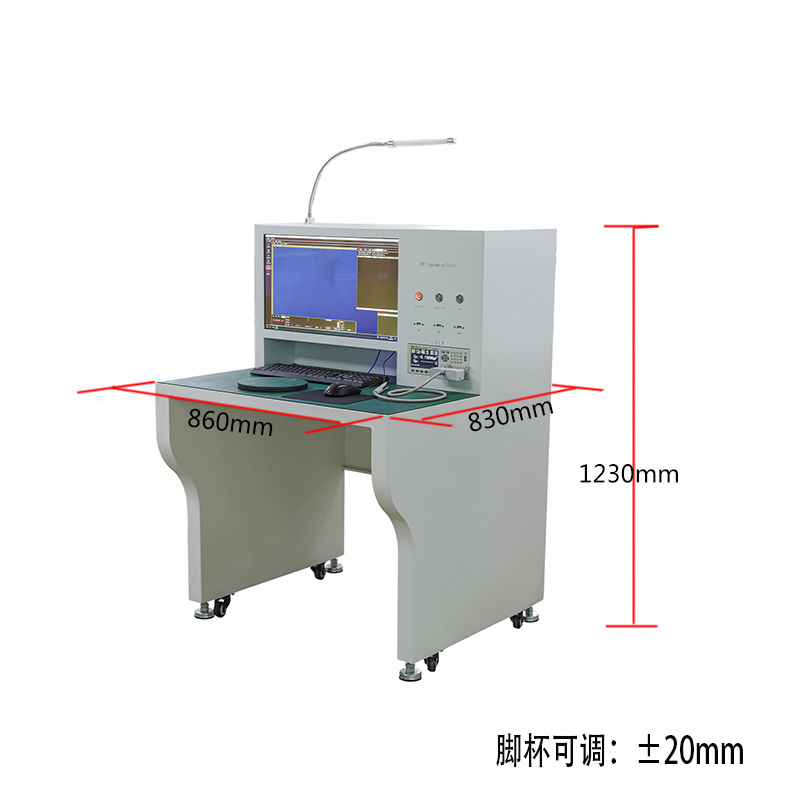

FAI-SD-9
【Fast programming of the SMT machine】+【FAI intelligent First Article Inspection】, a set of system to complete the whole process support of the SMT machine and the First Article Inspection Machine.
Ⅰ、【Shengdian SMT Fast Programming System】
【Shengdian SMT Fast Programming System】：Realize intelligent fast patch programming, eliminate the traditional manual programming troubles, improve the competitiveness of enterprises.
1. BOM Management: One-key combination of BOM and coordinates, automatic check of BOM anomalies, one-key comparison of old and new BOM, one-key comparison of program and BOM, one-key sorting of BOM into the format required by the mounting machine, intelligent differentiation of AB surface.
2.Intelligent Proofreading: Intelligent check whether the BOM package matches the welding pad, intelligent expansion of panel, intelligent measurement board size, intelligent correction mounting angle, intelligent correction mounting angle.
3.One Key Conversion: The program of different brand SMT machine is converted to each other.
4.One Key Generation: One key to generate station table, one key to generate mounting drawings, one key to generate the placement machine program.
5.Coordinate Extraction: Gerber/ steel mesh file extraction of coordinates, PCB drawing of coordinates.
6. Supported Brands: Yamaha, JUKI, Panasonic, Samsung Hanwha, Fuji, Hitachi, SONY.
7. Data Connection: Seamless connection to the mounting machine database, confirm in advance whether the material packaging is correct.
8. Support Reading: Gerber file, steel network file, Excel, txt text, CSV file.
9. Data General: SMT machine, AOI, the First Article Inspection Machine.
What the use of 【Shengdian SMT Fast Programming System】?
1. Intelligent process programming: automatic correction of coordinates, angles, intelligent splicing board, zero debugging from machine to line.
2. Save the time of transferring line and adjusting machine: intelligent process programming, no need to run on the machine one by one, save 200% time to do the program, save 300% time to adjust machine.
3. Seamless communication FAI First Article Inspection: the completed program can be directly used for the First Article Inspection Machine.
4. Reduce technical dependence on personnel: effectively reduce the error caused by inexperienced personnel.
5. Effectively improve the quality: eliminate the bad production caused by coordinate deviation, eliminate human error, precision.
SMT Programming Machine
SMT Programming Machine
SMT Programming Machine
SMT Programming Machine
SMT Programming Machine
|
Product Model |
Number of Components |
Way |
Time to do the program |
Time to adjust machine |
|
A |
200 |
Traditional Way |
60mins |
90mins |
|
【Shengdian SMT Fast Programming System】 |
5mins |
10mins |
||
|
B |
500 |
Traditional Way |
120mins |
150mins |
|
【Shengdian SMT Fast Programming System】 |
10mins |
15mins |
||
|
C |
1000 |
Traditional Way |
120mins |
180mins |
|
【Shengdian SMT Fast Programming System】 |
20mins |
30mins |
