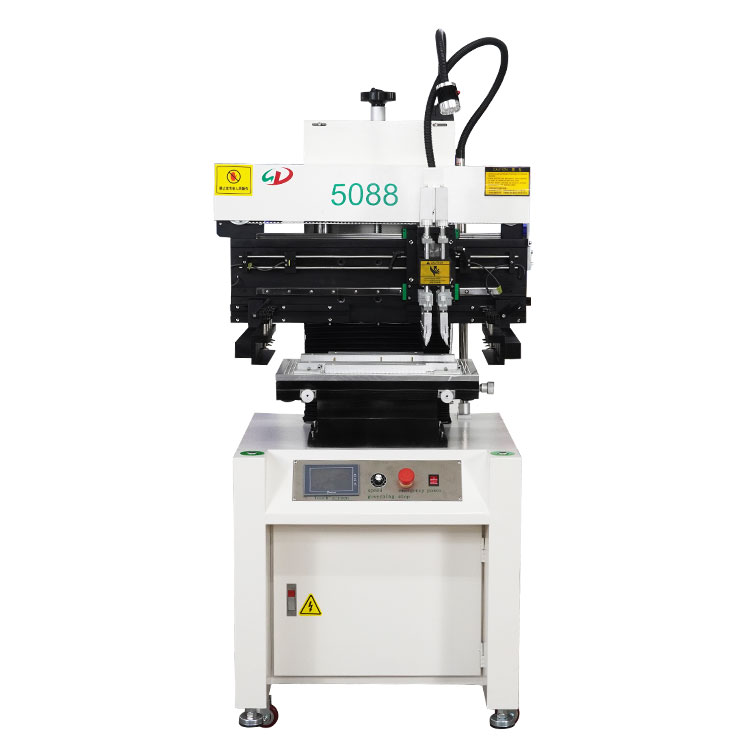

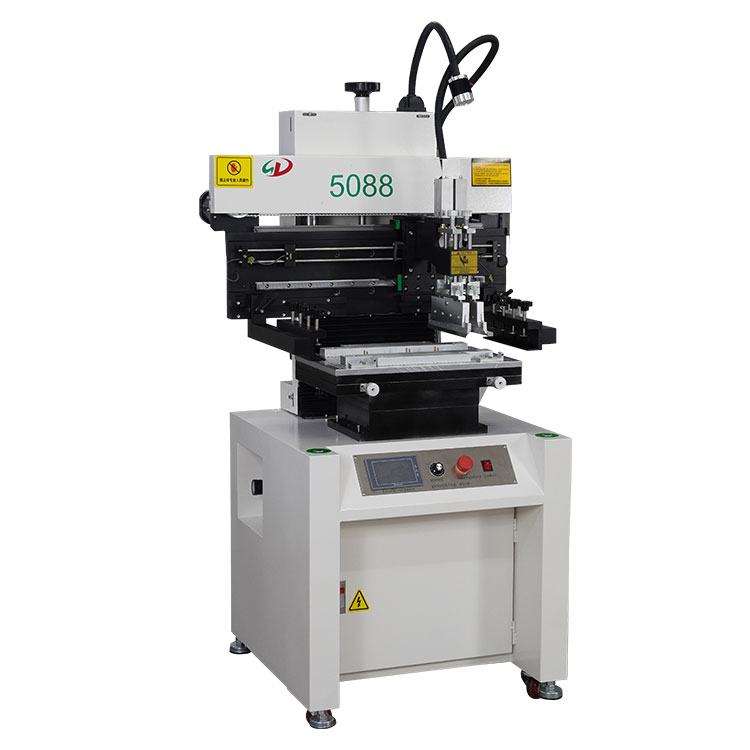

Semi-automatic printing machine Model: SD-5088L
1.Microcomputer control, touch screen display, menu operation interface;

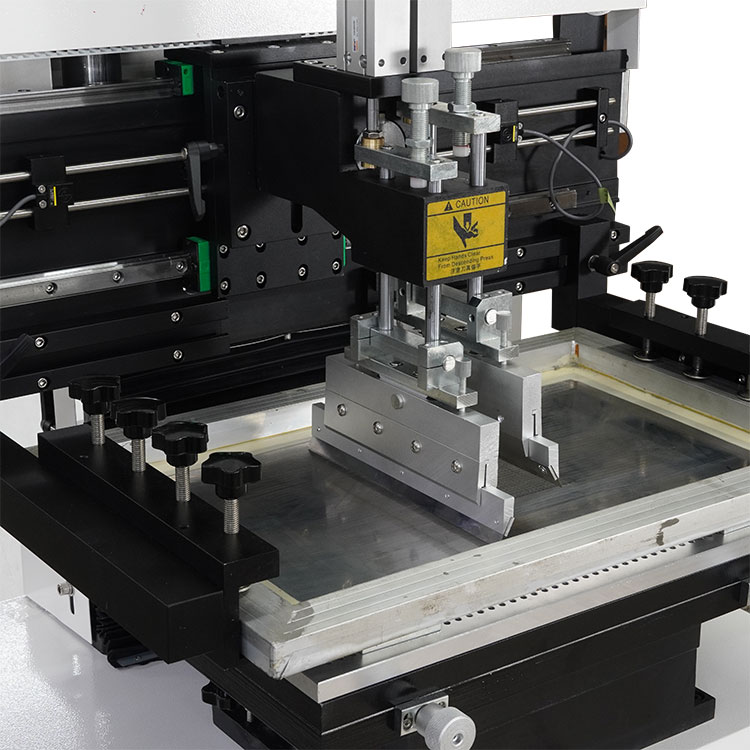

2.Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);
3.The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);
4.Equipped with frequency converter speed regulation system, scraper running speed is stable;
5.Operation with two-hand button switch, safe and reliable;
6.The pause time of the entire stencil can be independently set in the touch screen menu;
7.Positioning and fixing methods of PCB board include positioning of reference hole, positioning of reference edge, simultaneous positioning of reference edge of reference hole and template, etc.;
8.The touch screen is equipped with time display function, automatic counting function of printing times and screen protection function;
9.Equipped with scraper speed adjustable function and emergency stop safety function;
10.Printing mode: single, double and secondary startup (menu setting is optional);
11.Printing working state: automatic/semi-automatic/inching three printing states (menu setting is optional);
diyname0
diyname1
diyname2
diyname3
|
Model |
5088L |
|
Direction of movement |
Move left and right |
|
Workbench |
700*320mm |
|
Power Supply |
Single phase 220V |
|
Dimension |
1065*780*1480mm |
|
Air Supply |
0.5-0.8mpa |
|
Starting Power |
0.2KW |
|
Weight |
About 200KG |
|
Steel mesh clamping device |
Manual locking(thin cylinder clamping steel mesh is optional) |
|
Printing Range |
600*320mm |
|
Moving Motor |
Three-phase motor 60W |
|
Moving Speed |
0-2200mm/min |
|
Rail |
Taiwan silver linear guide |
|
PLC Control |
Siemens |
|
Touch Screen |
4.3# display control screen |
|
Main Cylinder |
SC63*150 |
|
Cutter Head Cylinder |
CDU25-50 |
|
Frequency Converter |
ENC |
|
Floodlight |
LED light |
